Taurus Slope Corrector for Pedestal

Slope Corrector

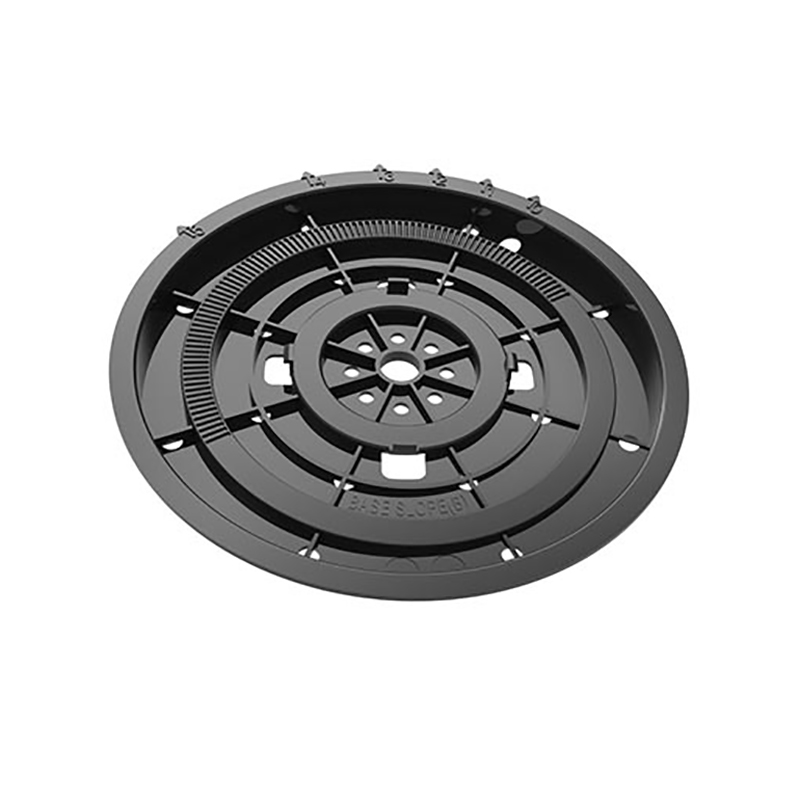

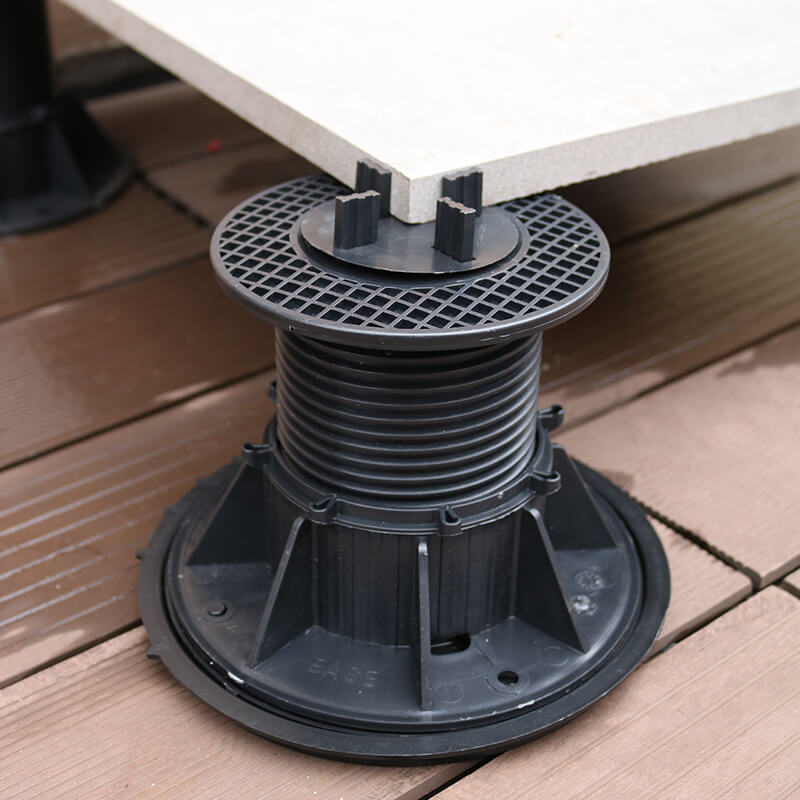

The slope corrector is a device specifically designed to adjust and correct the angle of pedestals on sloped or uneven grounds, compensating for inclines ranging from 0% to 5%. It's ideal for fine-tuning the angle of bases on slightly inclined surfaces and can be effortlessly affixed beneath adjustable support pads, ensuring your terrace, roof, or walkway remains consistently level.

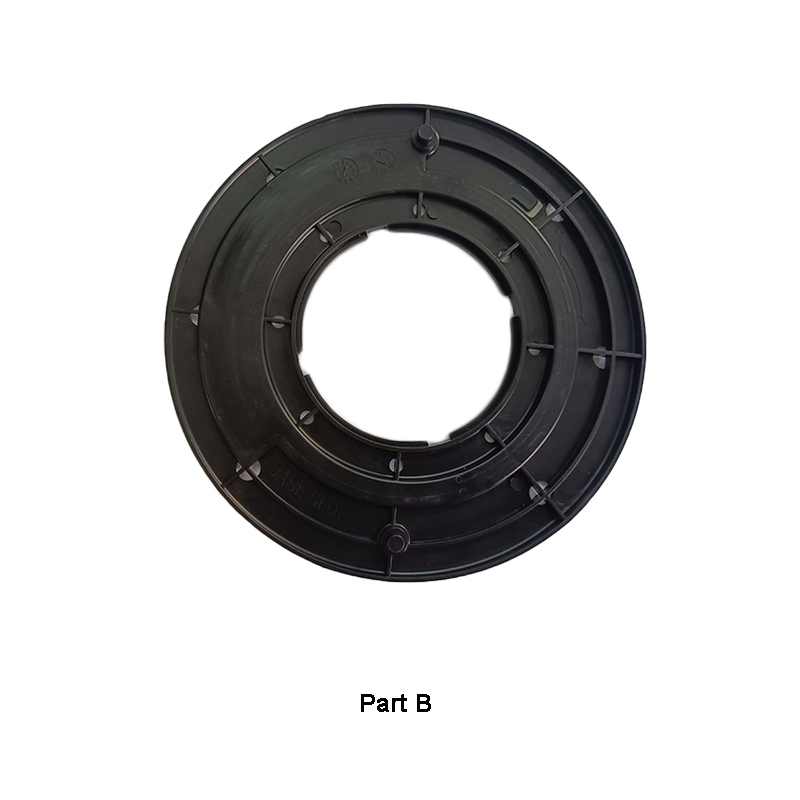

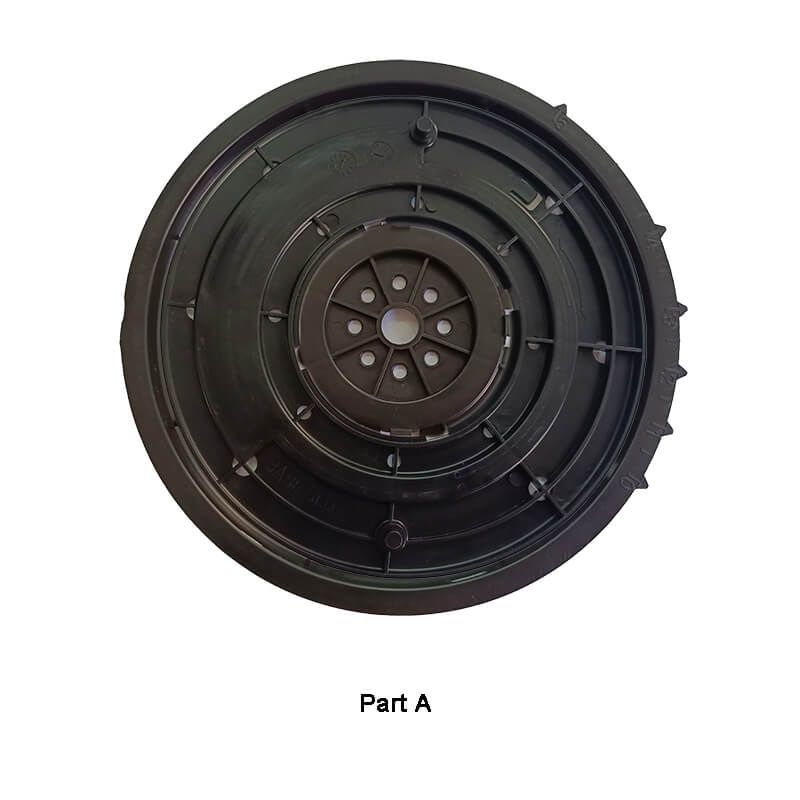

It is divided into two parts, the first part A has a diameter of 22.5mm, and the second part B has a diameter of 20.3mm.

At 0%, its height is 13mm when added beneath the pedestal; at 5%, its height increases to 18mm when added beneath the pedestal.

DataSheet

  • Material:Polypropylene(PP)
  • Thickness:2.5mm
  • Diameter:225mm
  • Suitable For Slope:0-5%
  • Temperature Range:-30℃ - 60℃
  • Service Life:Under normal use conditions, 10 - 20years

Note

The heights mentioned above do not include the height of the pedestal you are using.

Compatible with the TA-U pedestals, TA-R pedestals, TA-NR pedestals, TA-T pedestals, TA-A pedestals.
