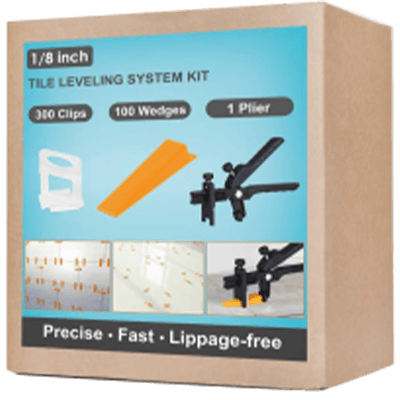

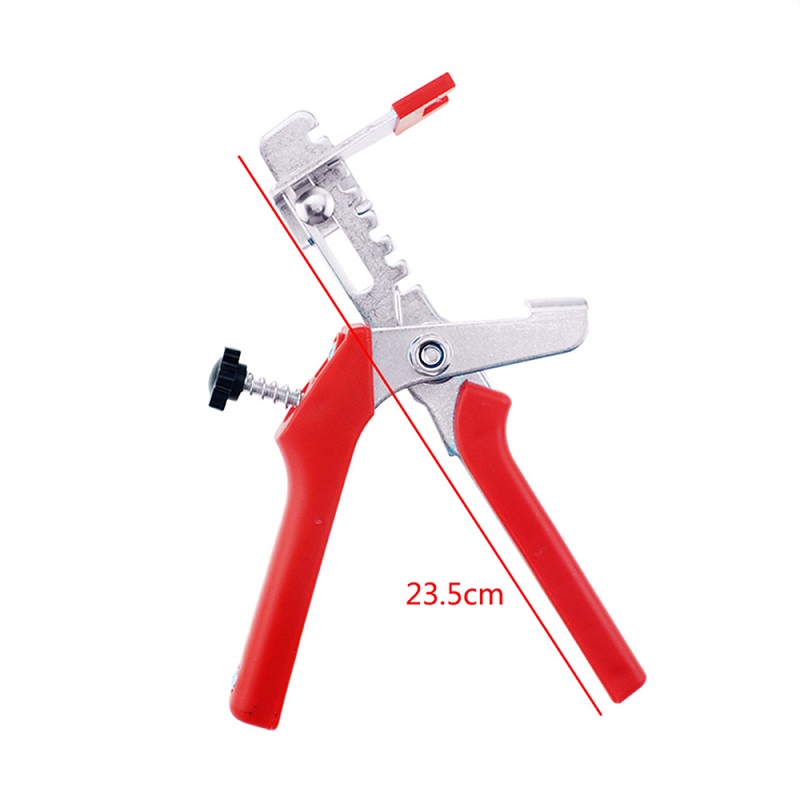

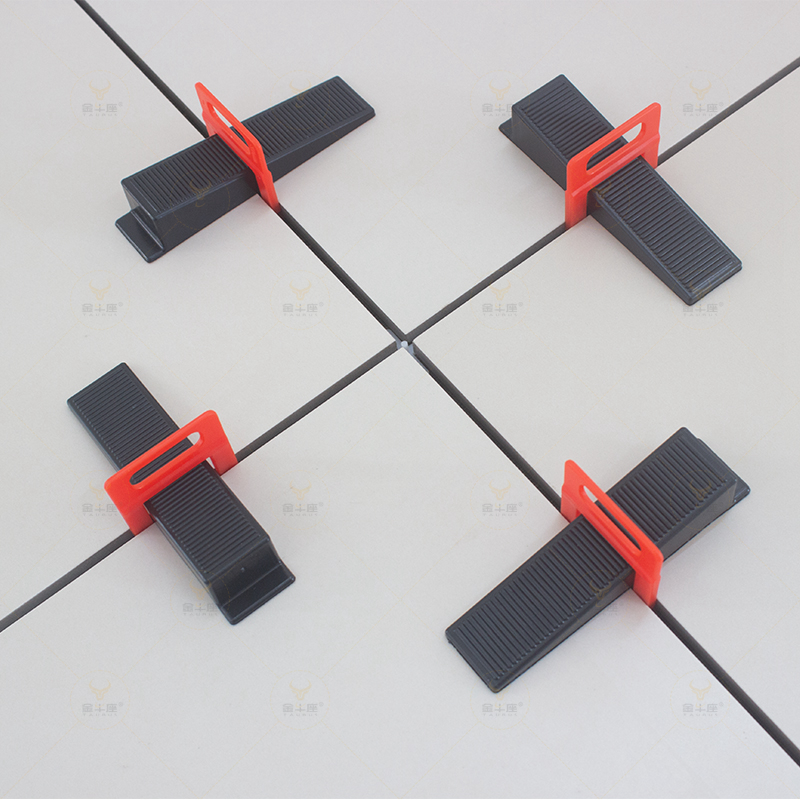

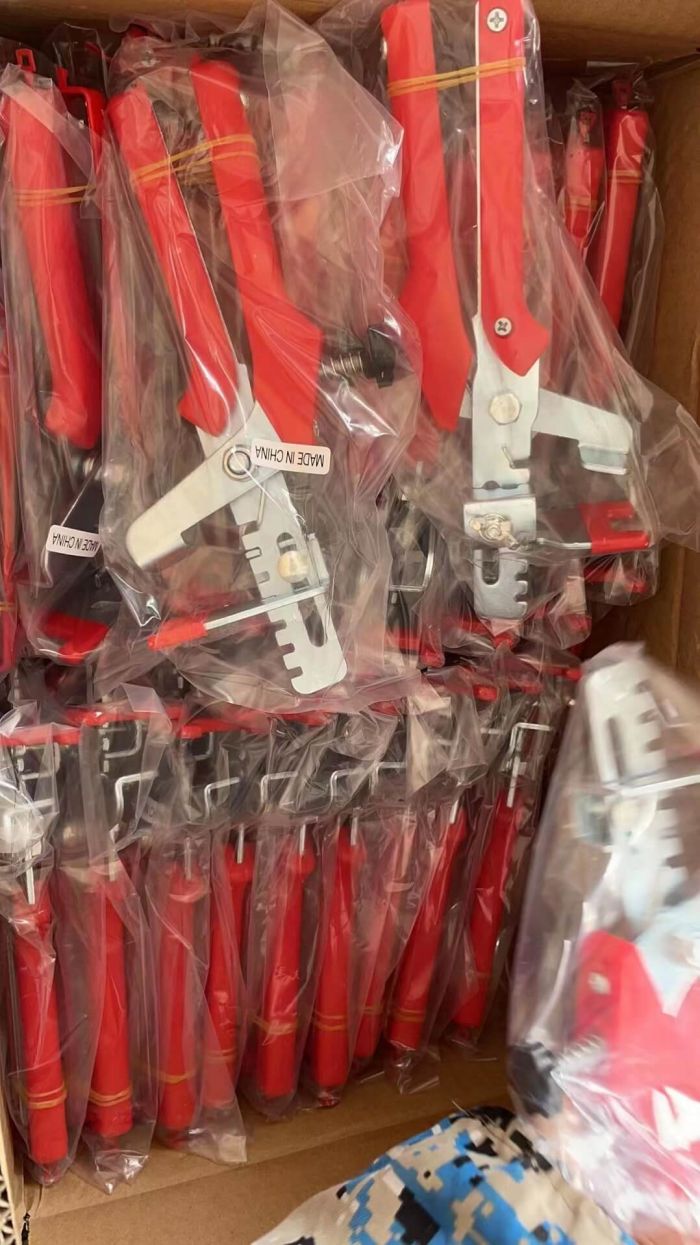

Tile clips and wedges are among the most popular types of tile leveling systems on the market, and they're also what we most often supply. Using tile leveling clips and wedges together can quickly level tiles and ensure even tile spacing, and when paired with our tile leveling pilers, you can achieve the best installation results.

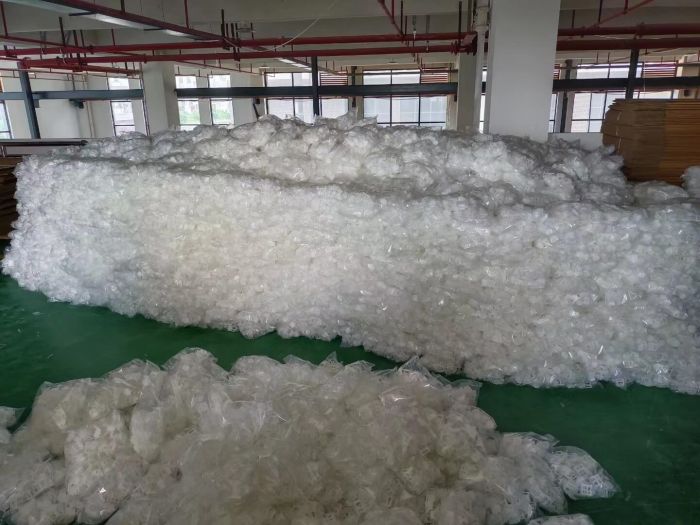

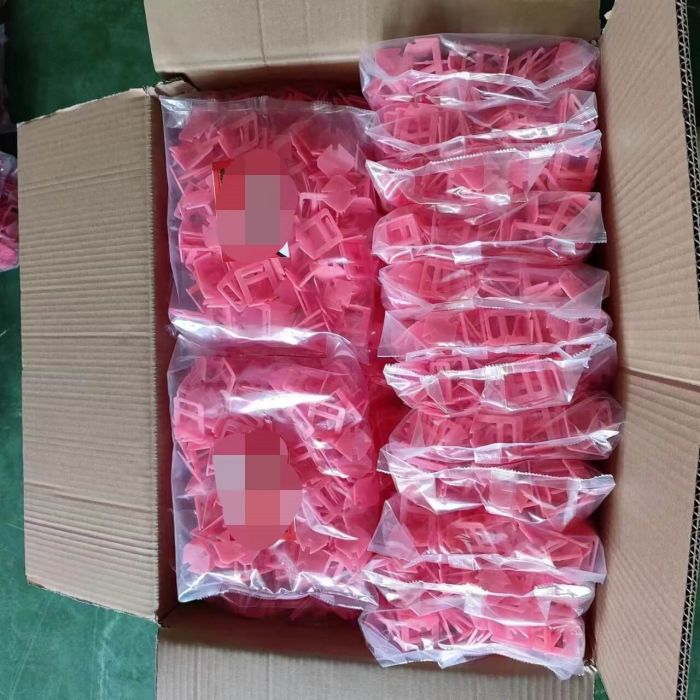

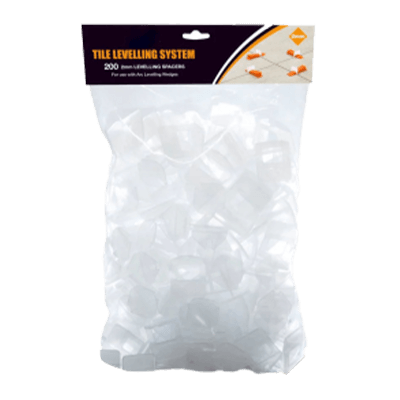

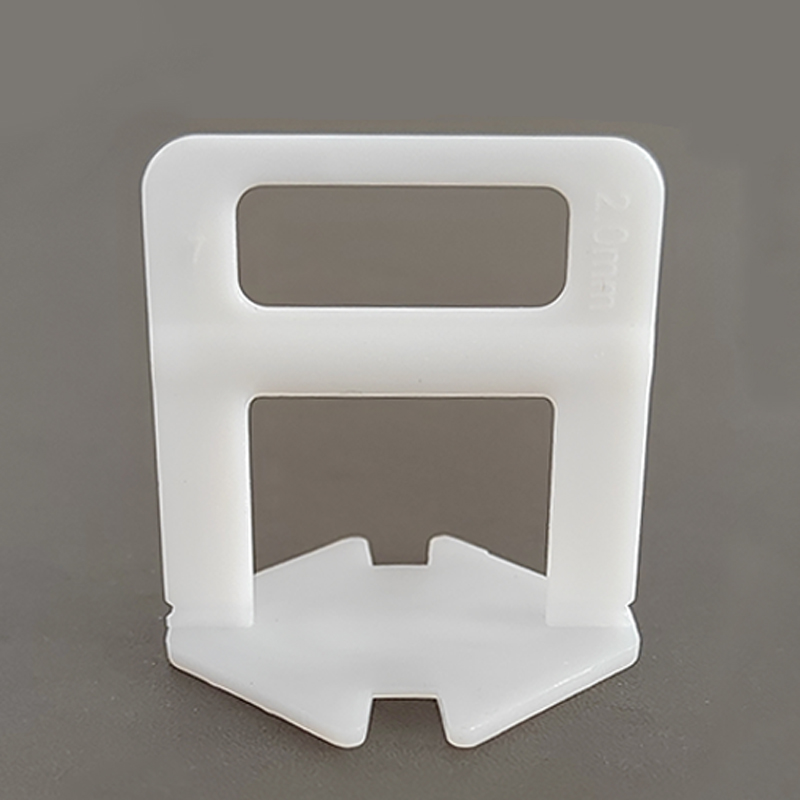

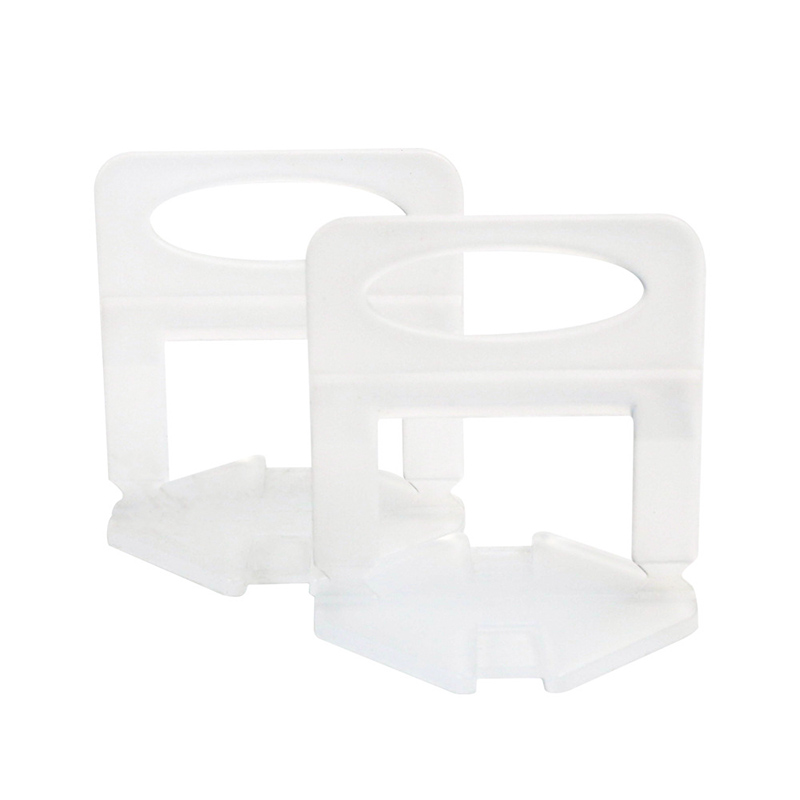

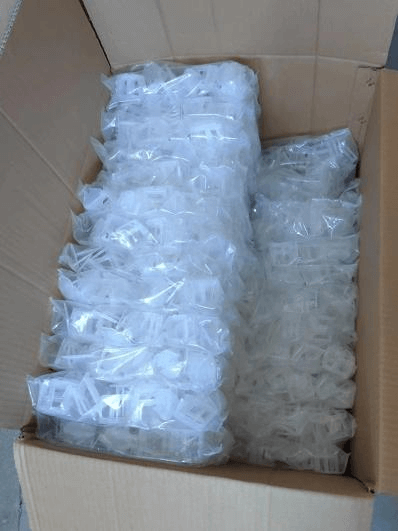

Tile clips come in 1mm, 1.5mm, 2mm, 2.5mm, and 3mm thicknesses to meet the needs of different markets, and we design and developed affordable model C01, professional model C02, and high model C03. C01 and C02 are suitable for 3-12mm tile thicknesses, and C03 is for 13-22mm. All three tile clips are single-use products that permanently remain in the bottom of the tile once used.

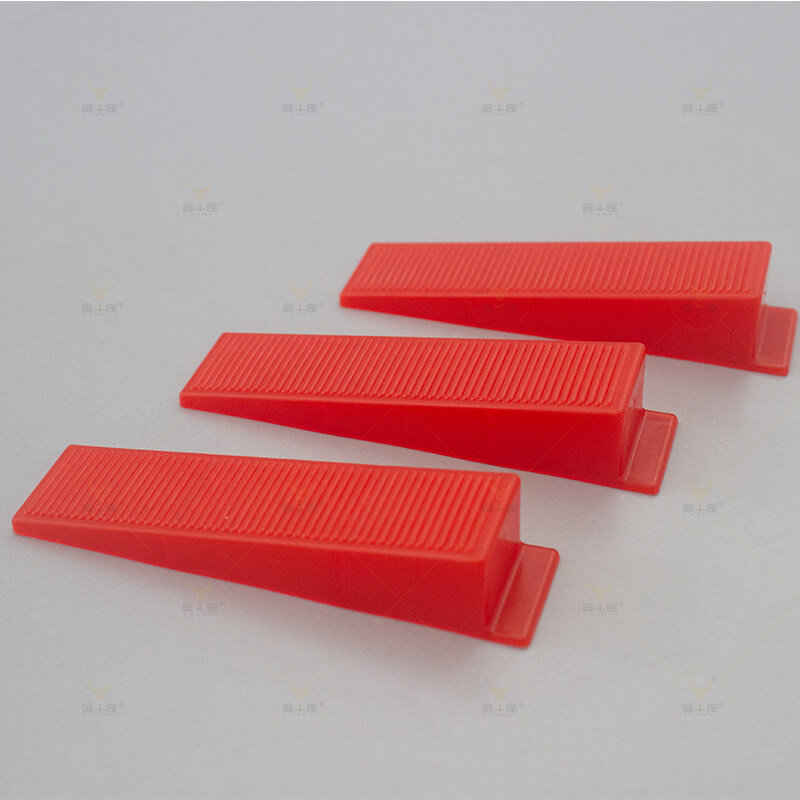

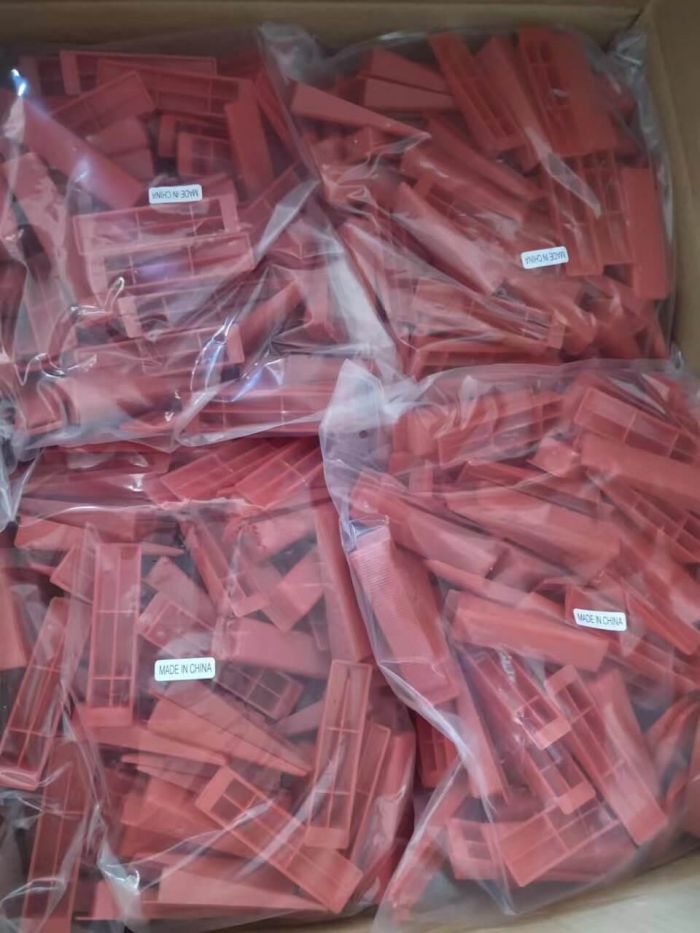

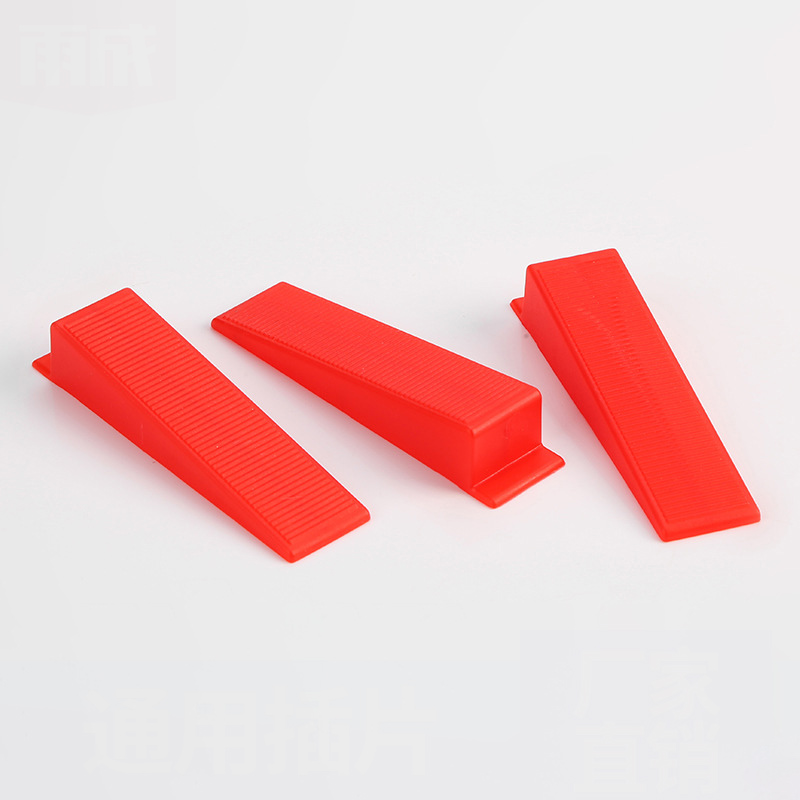

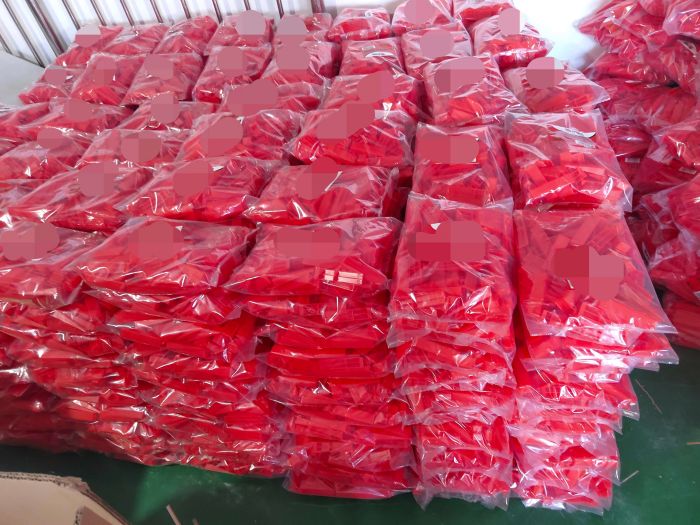

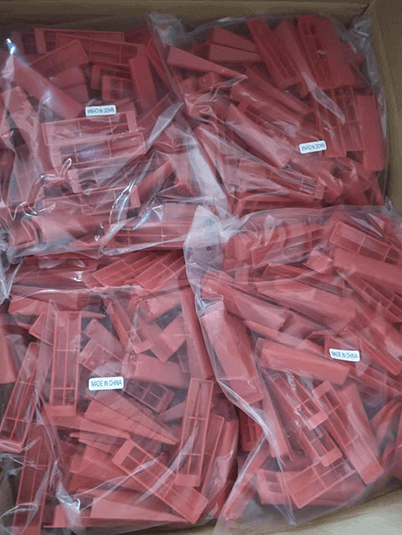

Tile wedges come in two versions - economical model W01 and professional model W02. The difference between them is size, thickness, and structure. Whether it's W01 or W02 wedge, they can be used with our C01, C02, and C03 clips. Once removed, the wedges are reusable until the product is damaged due to impact.

Specifications Of Tile Leveling System Clips And Wedges

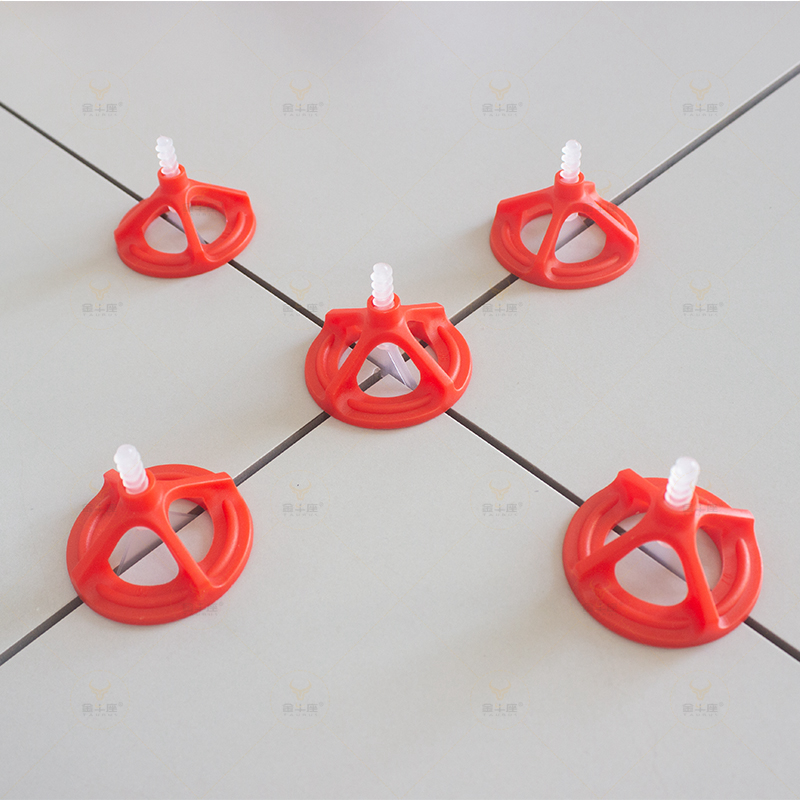

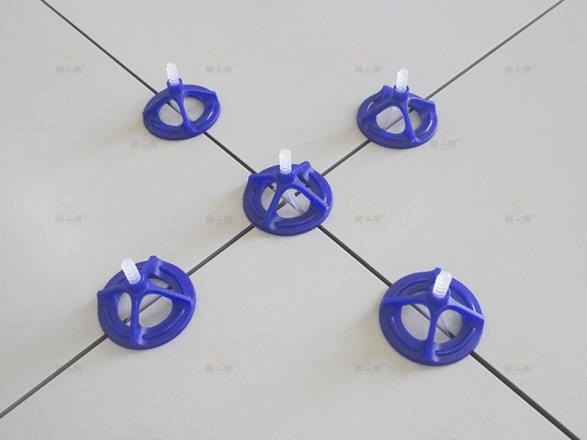

Spin Doctor Tile Leveling System is undoubtedly the most popular style on the market. It consists of a cap and a base. The cap has four symmetrical dividing lines, providing a great gripping point for our fingers when rotating the cap. It perfectly aligns with our finger ergonomics. The threads on the base and cap are smooth and frictionless, allowing for easy tile leveling by simply rotating it with our hands, without the need for any additional tools.

The base comes in different sizes: 1/32 inch (1mm), 1/16 inch (1.5mm), 1/12 inch (2mm), 1/10 inch (2.5mm), and 1/8 inch (3mm), suitable for tile thicknesses ranging from 5mm to 17mm. There are two types of bases available: the "+" type and the "-" type, catering to different tile placements and project requirements. The "+" type base is designed to create uniform gaps between the junctions of four tiles, achieving a neat and even tile layout (can also be used as spacers). The "-" type base is intended for providing uniform and straight gaps between two tiles, suitable for different tile edges and ensuring a flat installation. The bottom of the base is also designed to be easily breakable, solving the issue of incomplete breakage that may lead to rework.

The cap is compatible with both types of bases and can be reused multiple times.

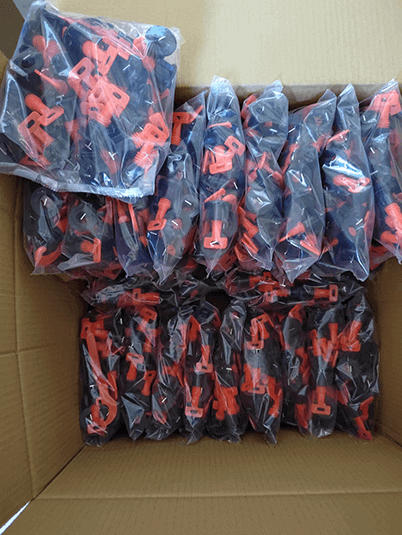

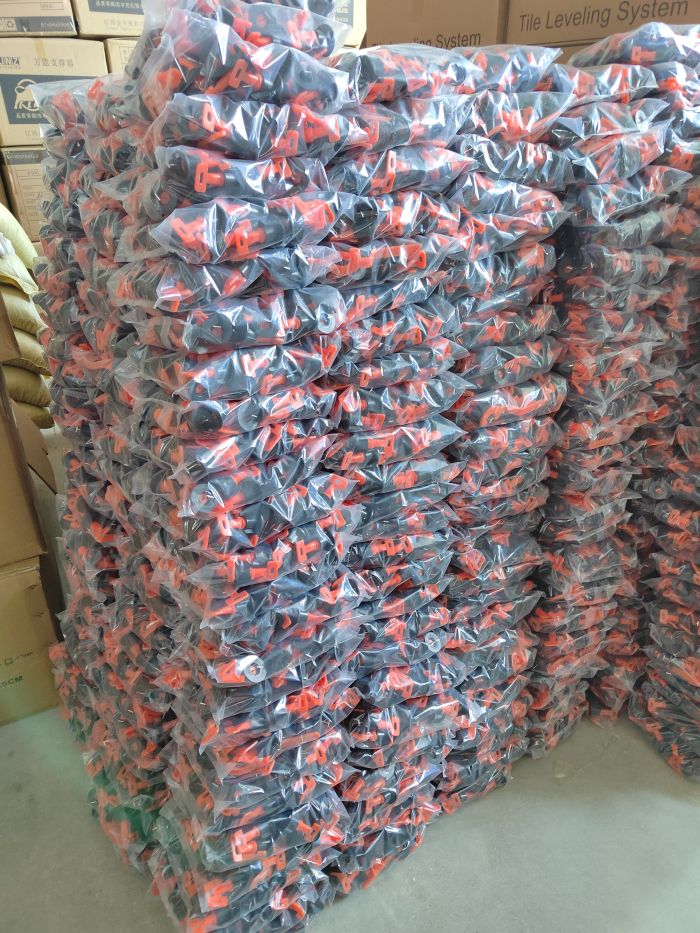

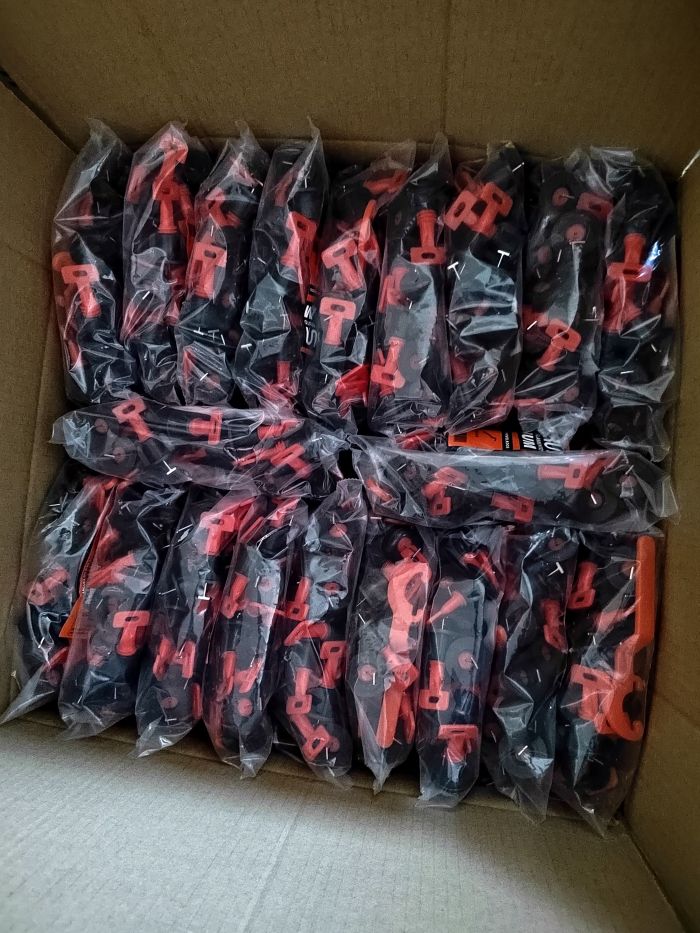

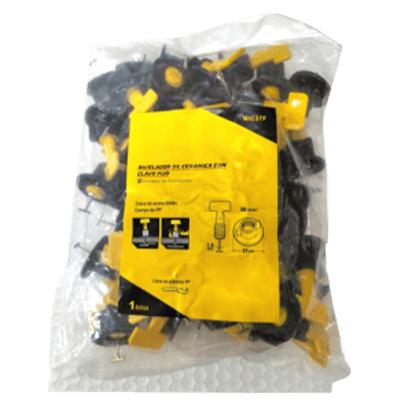

Reusable Tile Leveling System consists of a threaded cylinder with an embedded T-shaped steel pin and a cap that is compatible with the threads. By placing the T-shaped steel pin underneath two tiles and tightening the cap with the provided wrench, you can apply torque to truly level the tiles. It enables you to quickly ensure the flatness of tiles and prevent unevenness, making it the ideal tool for leveling large-area tiles.

It is reusable, and the embedded T-shaped steel pin is resistant to bending or deformation. Additionally, it can be easily removed and replaced. The standard size of the steel pin is 1.5mm, suitable for tile thickness ranging from 3mm to 16mm. Moreover, optional sizes for the steel pin include 0.5mm, 1mm, an extended 1.5mm, and 2mm. Except for the extended 1.5mm size, which is suitable for tile thickness ranging from 15mm to 26mm, the other sizes are applicable to tile thicknesses between 3mm and 16mm.

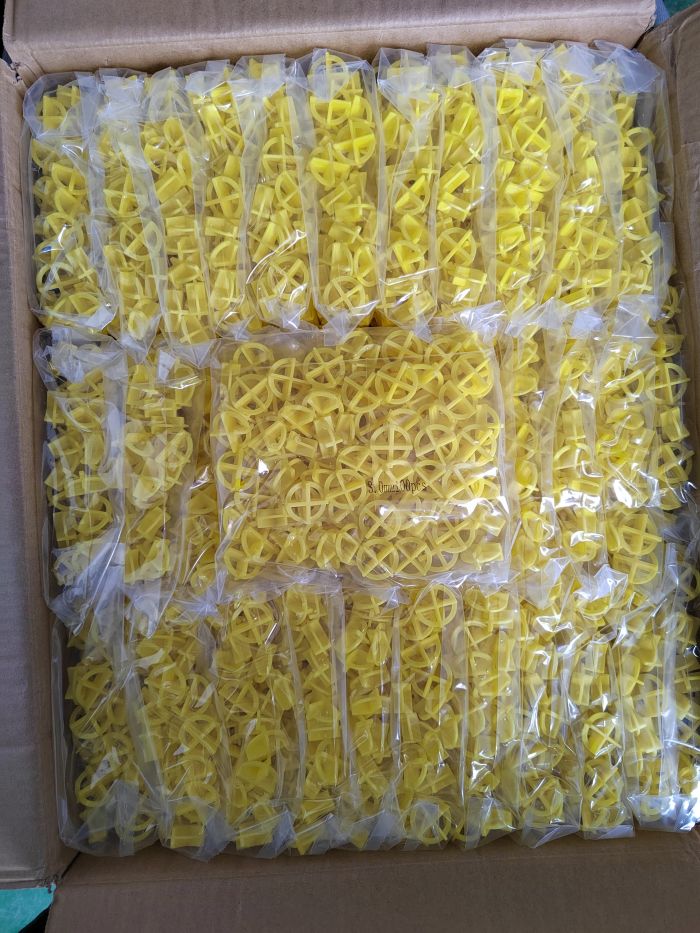

Tile spacers are tools installed between adjacent tiles that help us maintain even and aesthetically pleasing gaps between them.

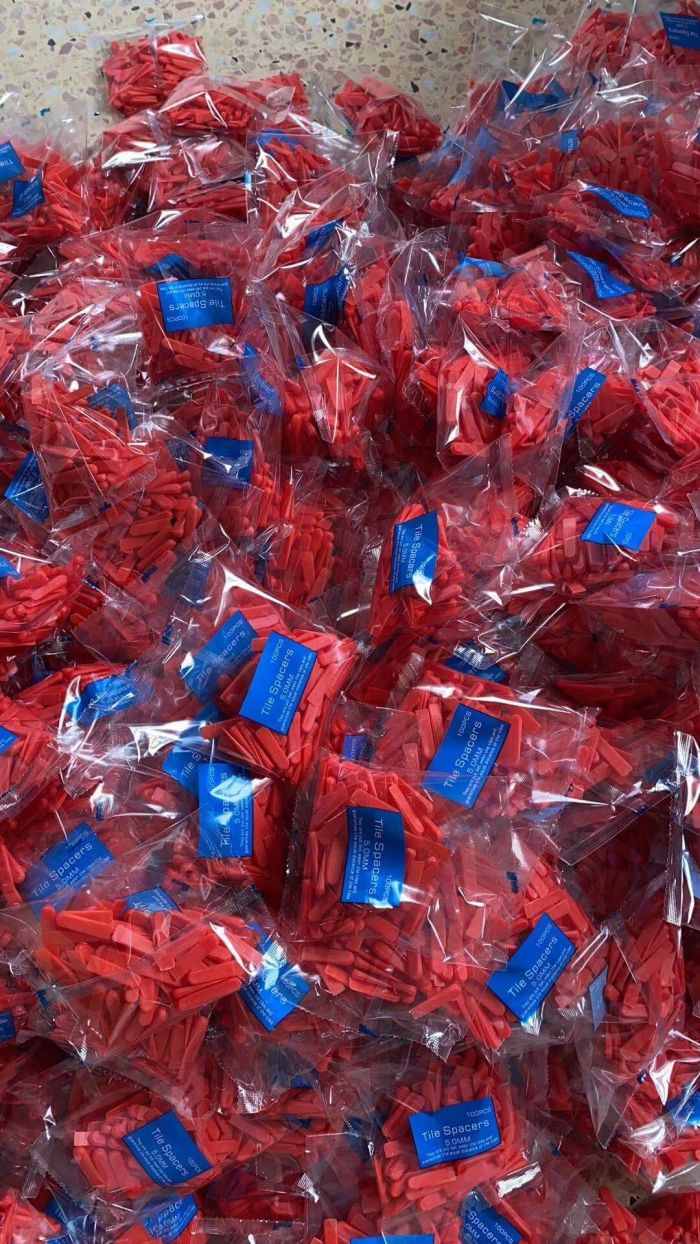

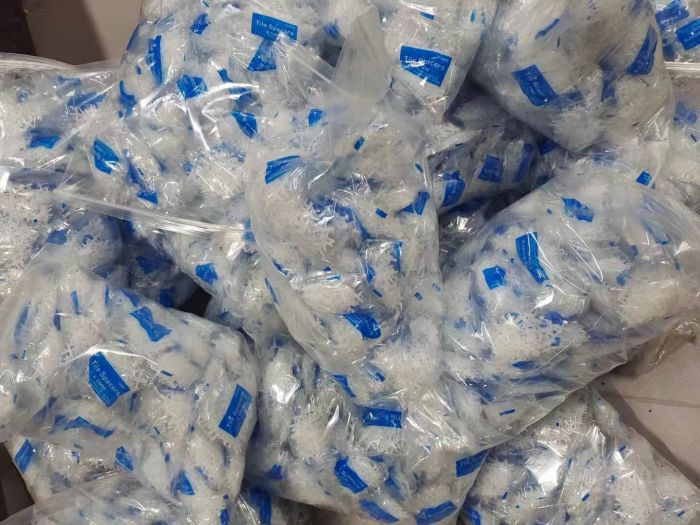

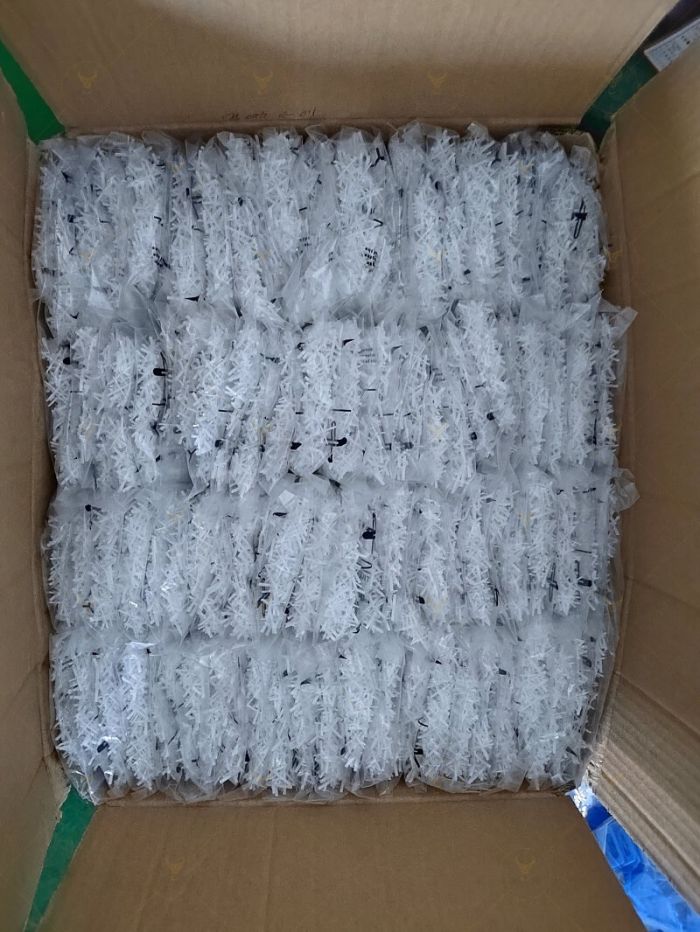

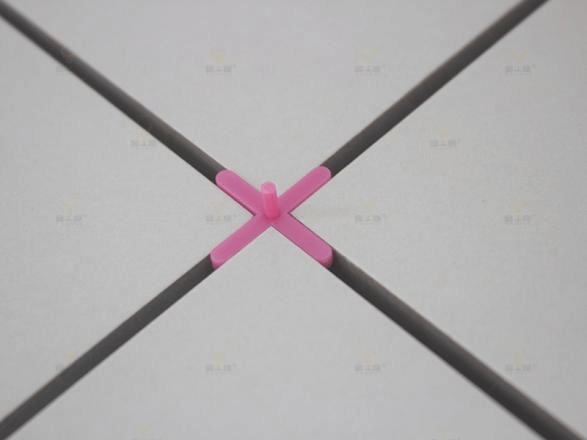

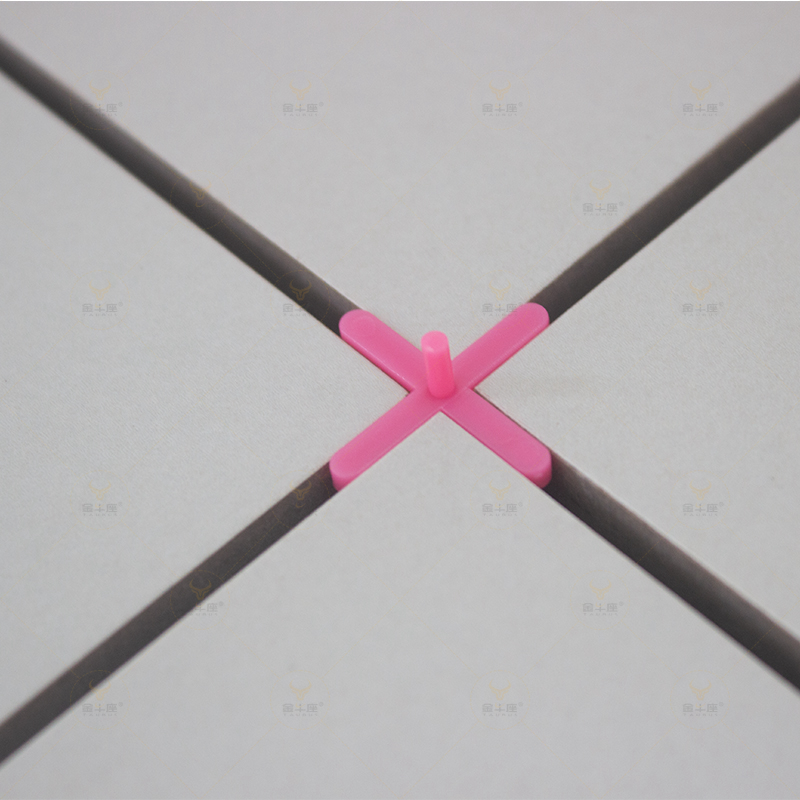

The most common style is the tile cross spacer. Additionally, there are several other styles available, such as tile spacers with a handle, Y-type tile spacer, T-type tile spacer, tile wedge spacers, horseshoe shim, 2 in 1 tile spacers, and 2 in 1 tile spacers.

The common sizes for tile cross spacers are 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, 5mm, 6mm, 8mm, and 10mm. The sizes for other styles mostly range from 1mm to 3mm.
