What is a Tile Spacer?

Tile spacer is a small device used to determine the distance between each tile when laying tiles. It is usually a small piece made of plastic that can be inserted between two adjacent tiles to keep the distance between the tiles consistent, so that the laid tiles are more neat and beautiful, and it can be convenient for subsequent caulking materials construction. It has a variety of styles for you to choose, such as + type tile spacer, + type tile spacer with handle, Y type tile spacer, T type tile spacer, horseshoe shim, 5 in 1 tile spacer, 2 in 1 tile spacer, tile wedges spacer.Tiles of different specifications and shapes require tile spacers of different specifications and shapes.

Types of Tile Spacer

Taurus has always been adhering to the tenet of "technology-led, quality-first, and people-oriented".

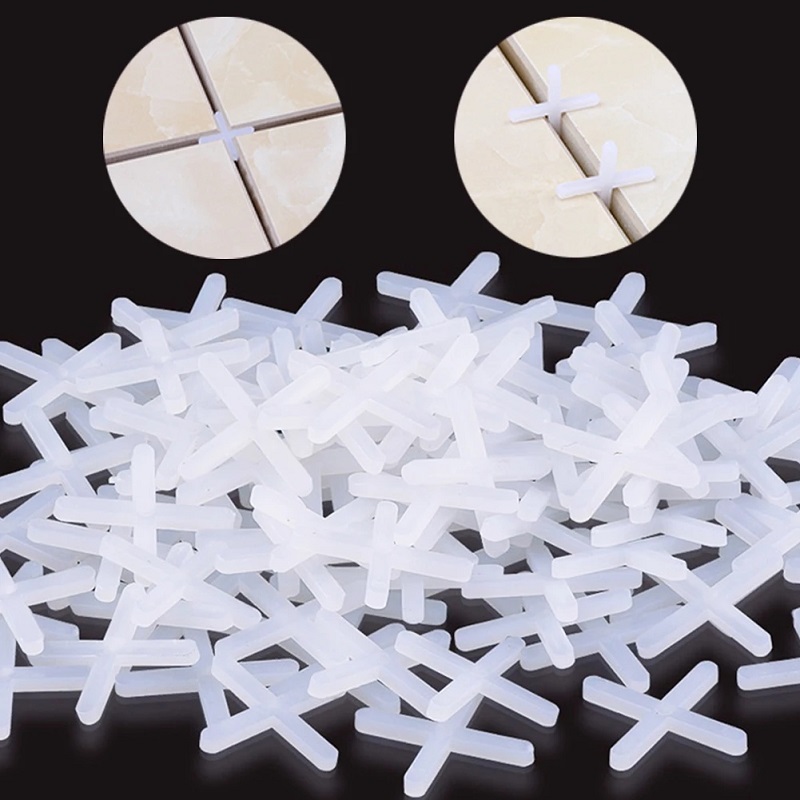

taurus + Type Tile Spacer
+ Type Tile Spacer

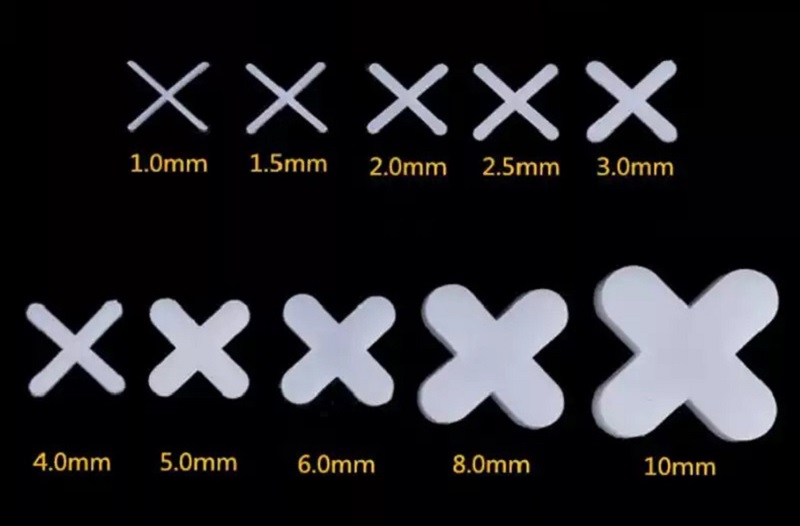

Size: 1.0 / 1.5 / 2.0 / 2.5 / 3.0mm, 4.0mm, 5.0mm, 6.0mm, 8.0mm, 10mm.

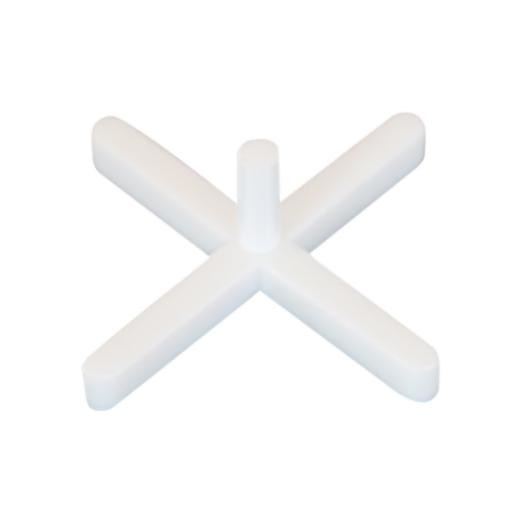

taurus Tile spacer with handle
Tile spacer with handle

Size: 1mm,2mm,3mm,4mm,5mm,10mm.

taurus T Type Tile Spacer
T Type Tile Spacer

Size : 1.0mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 8.0mm, 10 mm.

taurus Y Type Tile Spacer
Y Type Tile Spacer

Size : 2.0mm, 3.0mm, 4.0mm.

taurus Horseshoe Shim Tile Spacer
Horseshoe Shim Tile Spacer

Size : 1/16inch, 1/8inch, 3/16inch, 1/4inch.

taurus 5 In 1 Tile Spacer
5 In 1 Tile Spacer

Size : 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm.

taurus 2 In 1 Tile Spacer
2 In 1 Tile Spacer

Size : 1.0mm, 1.5mm, 2.0mm, 2.5mm, 3.0mm.

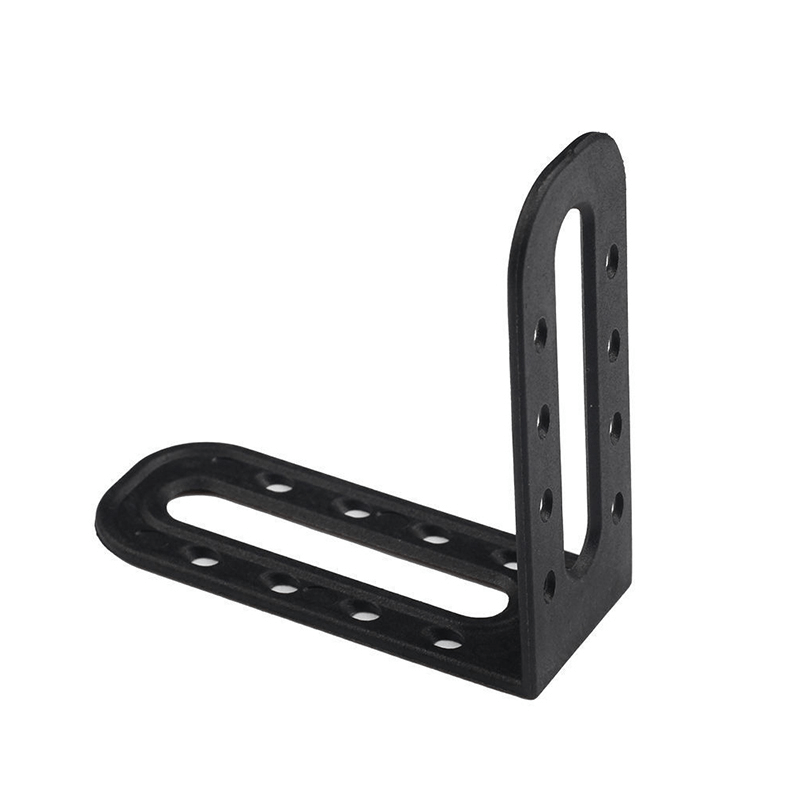

taurus Angle Fixter
Angle Fixter

Size : Suitable for different types of tile leveling system.

Why Use Tile Spacers When Laying Tiles?

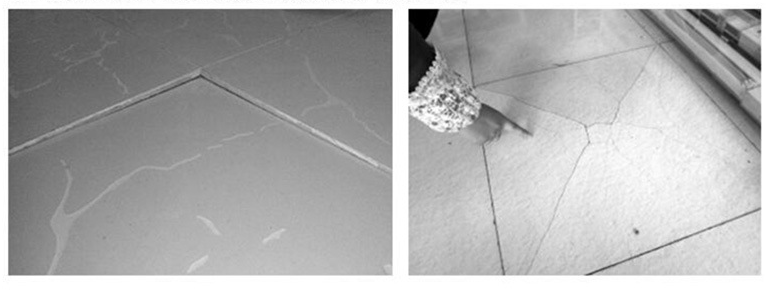

1. Tiles are subject to thermal expansion and contraction.

Both tiles and the cement mortar used in their installation are subject to thermal expansion and contraction. In the process of temperature or humidity changes, both tiles and cement mortar will expand or contract. If no space is left between the tiles, it may cause the tiles to bulge or crack during later use, resulting in inconvenience and requiring time-consuming repairs.

2. There may be size deviations in the tiles.

Although modern tiles are mechanically produced, there may be size deviations in the production process. Without spacing, unevenness in the joints during tile installation may occur, which can affect the overall appearance of the tiles.

3. Human error in installation.

Tile installation requires skilled workers, but there may still be errors in the installation process. Different times or situations also affect the end result. Without spacers, it is difficult to ensure that the tile joint lines are straight and level, which can affect the appearance and consistency of tile installation.

Therefore, using tile spacers can help avoid these problems and ensure a more beautiful and durable result in tile installation.

Using Tile Spacers During Tile Installation Has Several Benefits

using tile spacers is an important step in achieving a high-quality, professional-looking tile installation.

taurus tile leveling system

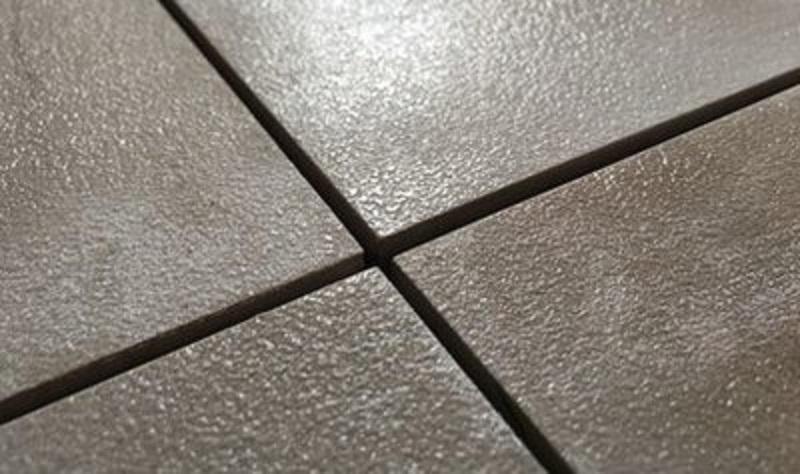

Ensures consistent joint spacingTile spacers help ensure consistent spacing between each tile, which helps to achieve a more professional and uniform appearance.
Prevents tiles from shiftingWithout spacers, tiles can shift during the installation process, resulting in uneven grout lines or even cracked tiles. Spacers help keep tiles in place as the adhesive sets.
Simplifies grout applicationWhen tiles are installed with consistent spacing, it is easier to apply grout. Grout lines that are consistently spaced also tend to look cleaner and more polished.
Reduces the need for cutsBy using spacers, you can plan your tile layout in advance and minimize the number of cuts needed for tiles that do not fit exactly. This can save time and reduce material waste.

How To Use Tile Spacers?

Use of + type tile spacer (tile cross spacer)

taurus + Type Tile Spacer

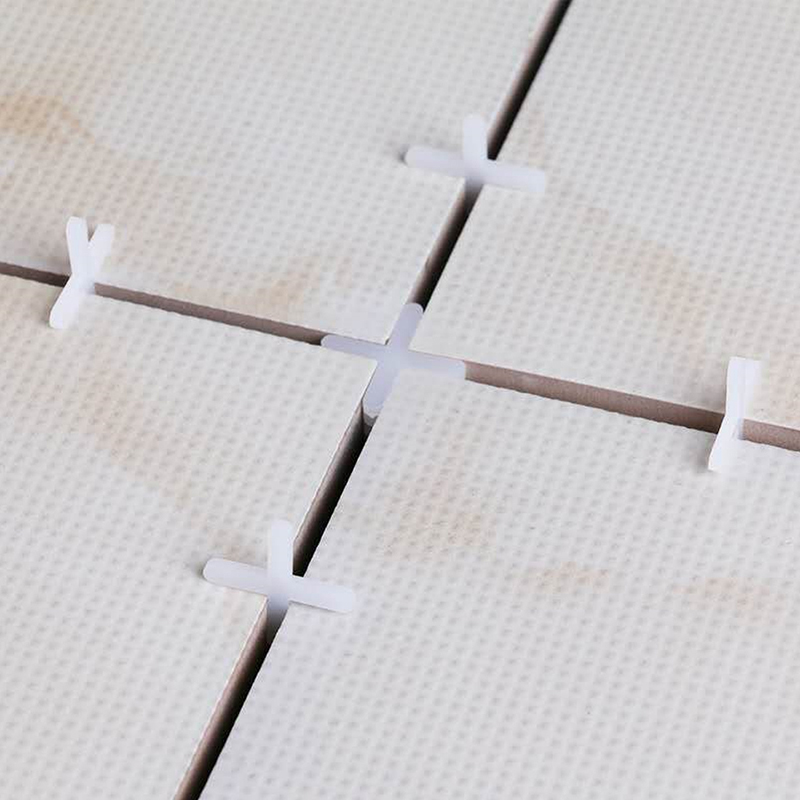

Flat insertion type: tiles are used in parallel

taurus + Type Tile Spacer

Vertical insertion type: use vertically with tiles

Use of T type tile spacer (tile cross spacer)

taurus + Type Tile Spacer

Positioning and leaving seams at the joints between walls and floors

taurus + Type Tile Spacer

Positioning and seam retention when using the "工" type sticking method(horizontal placement)

taurus + Type Tile Spacer

Positioning and seam retention when using the "工" type sticking method (vertical placement)

Use of other type tile spacer (tile cross spacer)

taurus Y Type Tile Spacer

Y Type Tile Spacer

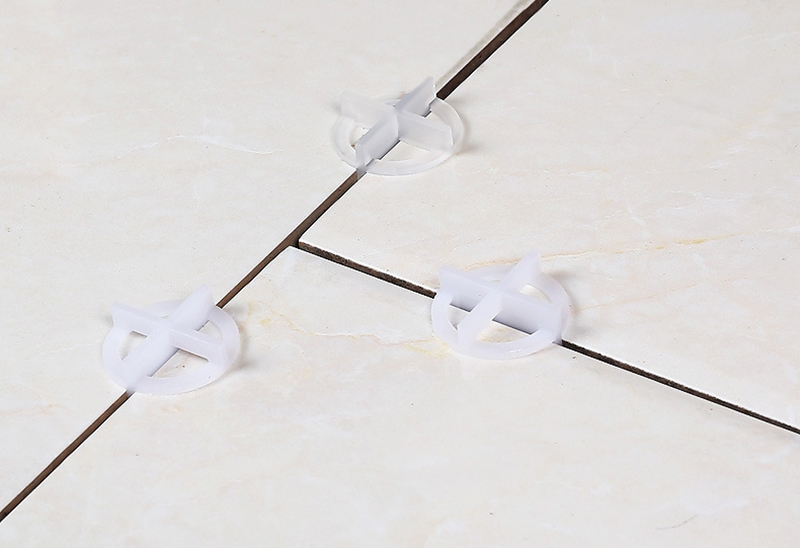

taurus horseshoe-shim-tile-spacer

Horseshoe Shim Tile Spacer

taurus 5 In 1 Tile Spacer

5 In 1 Tile Spacer

taurus 2 In 1 Tile Spacer

2 In 1 Tile Spacer

taurus Tile Wedge Spacer

Tile Wedge Spacer

taurus Angle Fixter

Angle Fixter
