Taurus Vertical Closure Clips for Pedestal

Vertical Closure Clips

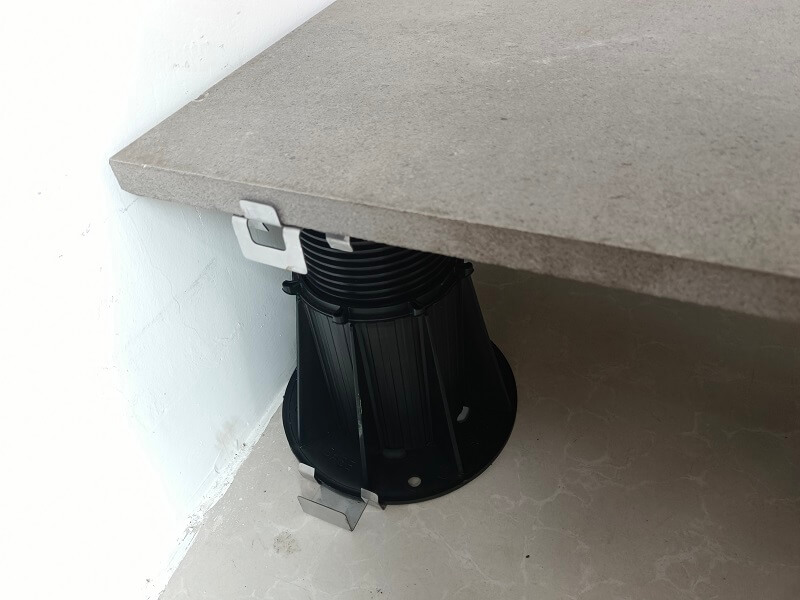

Vertical closure clips is a groundbreaking solution for raised floor systems. Crafted for scenarios where no perimeter wall exists, these clips ensure a seamless, sturdy edge. Consisting of two specially-designed stainless-steel clips, these are effortlessly attached directly to both the base and head of our pedestal supports. When aesthetics meet innovative engineering, these clips are the answer. Notably, their unique design allows for multi-level terrace creation and precise gap elimination.

Features

  • Precision Fit: Compatible exclusively with porcelain tiles, ensuring a snug and secure fit.Prohibits any horizontal movement, giving you peace of mind about your terrace's security.
  • Adaptive Design: Besides conventional use, these clips pave the way for varied levels and steps, giving your space a unique touch.
  • Effortless Installation: The clips attach directly to the base and head of Taurus pedestal supports, requiring no additional hardware. Plus, the unique design still allows height adjustments.
  • Safety First: Although perfect for creating beautiful vertical closures, these vertical edge clips ensure the step height remains standard for safety.

Installation Considerations

  • Compatibility:The side closure steel clip system are designed for holding 3/4" thick porcelain pavers only.
  • Height limitation:The maximum height of the vertical face should normally not exceed 8".
  • Full-width pavers:It is recommended to use 24" wide pavers for optimal results.
  • Secure first rows:Use adhesive if necessary to secure pavers to pedestal heads for the first two rows.

DataSheet

  • Material:Stainless Steel

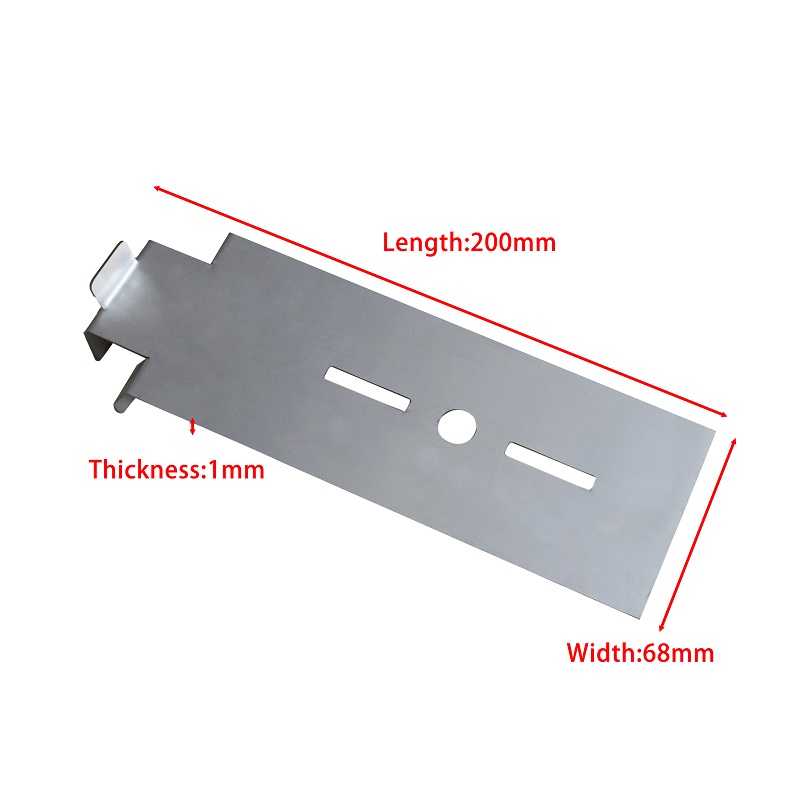

  • Upper Clip For Vertical Closure Length:200mm

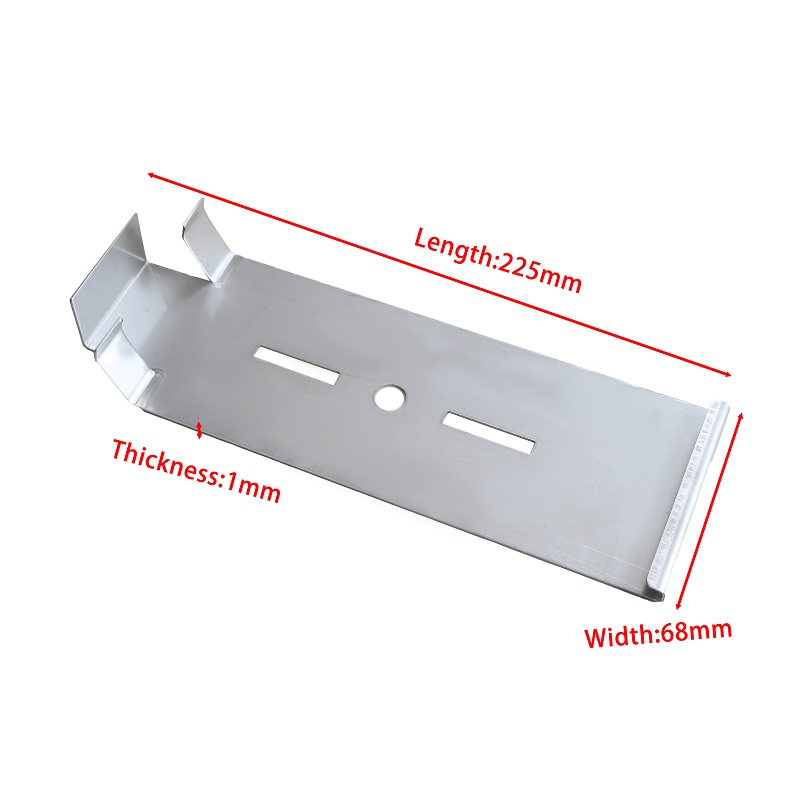

  • Lower Clip For Vertical Closure Length:225mm
  • Width:68mm
  • Thickness:1mm
