Do You Need Concrete Under a Trench Drain?

Nov 09,2023

View: 87

As a contractor, you may have questions about whether a concrete base is needed under a trench drain system. This article will explore this question in more detail, drawing on the knowledge and expertise outlined in several online resources.

Firstly, it is important to understand the basic principles and use cases for trench drain systems. A trench drain is a linear drainage device used to collect and convey surface water. It consists of one or more interlocking channels that are installed along specific areas of ground or other surfaces, such as driveways, patios, and pool surrounds. They are typically designed to handle large volumes of surface water to prevent damage to buildings or other ground structures. Before undertaking installation, several factors must be considered:

  • Material selection.
    Trench drains can be manufactured using different types of materials, including concrete, plastic, and resin. The most suitable material will depend on the specific use case and load requirements.

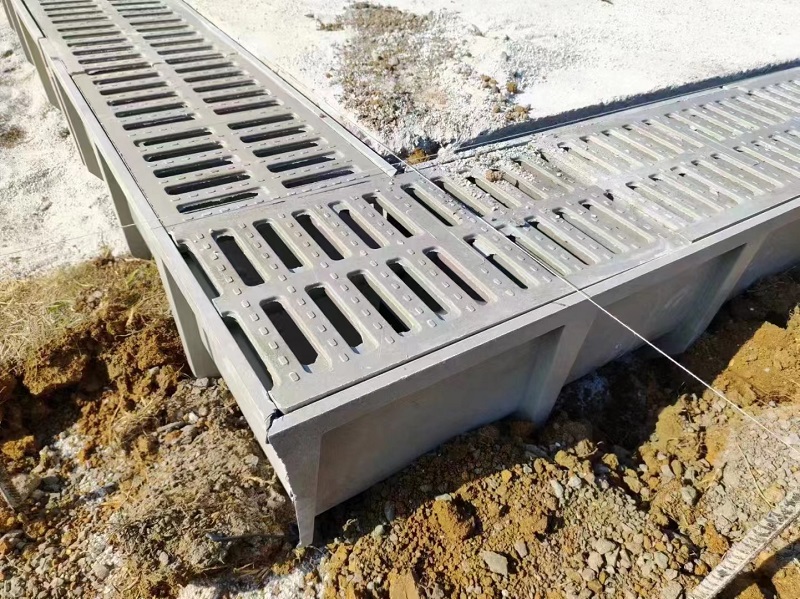

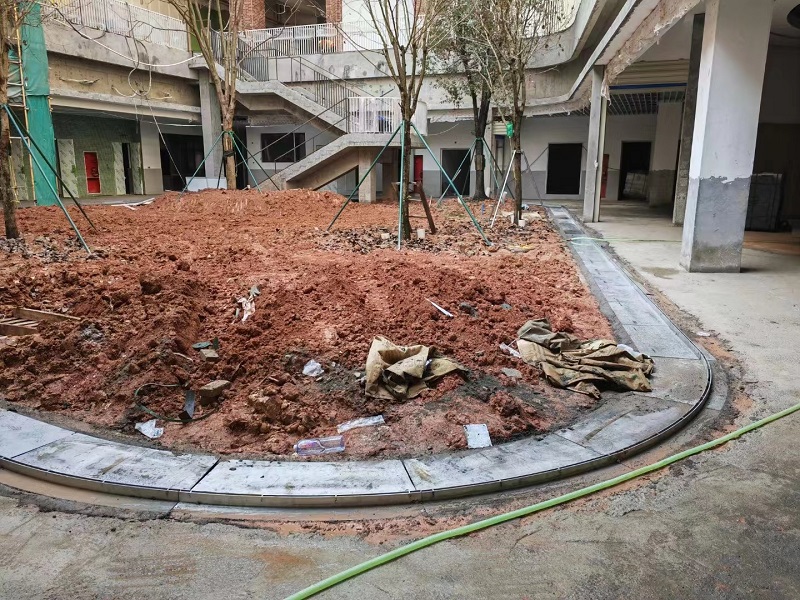

  • polymer-drainage-channel-01 slot-drain-system-01 plastic-channel-drains-01
  • Installation location and depth.
    Trench drains must be installed at the correct depth and position to effectively handle the required water flow.
  • Connection to drainage pipes.
    Trench drains are often connected to drainage pipes to discharge collected water to an appropriate location. Connections must be correctly installed and sealed to ensure unobstructed flow.

Returning to the original question, do you need a concrete base under a trench drain system? The answer depends on the specific situation. Here are some scenarios where a concrete base may be necessary:

  • Poor ground stability.
    If the ground is very uneven or unstable, a concrete base may be needed to support the entire trench drain system. For example, when installing a trench drain system on fill or soft soil, a concrete base can increase the stability and structural strength of the system.
  • Heavy loads.
    If you need to place heavy vehicles or other large equipment on top of the trench drain, a concrete base is necessary. This ensures that the trench drain system can withstand the required load and maintain its shape.
  • Engineering requirements.
    In some cases, building codes may require a concrete base under the trench drain system. This typically occurs in commercial or public projects to ensure the reliability and durability of the drainage system.

In general, a concrete base is required in certain specific situations, primarily to enhance the system's stability and load-bearing capacity. However, not all trench drain systems necessitate a concrete base. Whether a concrete base is needed should be determined based on project requirements and recommendations from an engineer. It is advisable to consult with professionals for accurate advice and guidance before installing a trench drain system.

In conclusion, trench drain systems are a highly effective solution for collecting and discharging surface water. Before undertaking installation, multiple factors must be considered to determine whether a concrete base needs to be installed underneath the trench drain system.
